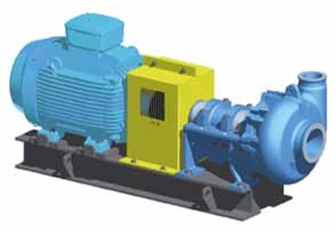

DC Driven Type (Direct coupled)
- The output shaft of a motor is directly connected to the input shaft of a pump via a pump coupler. This type of connection is suitable for applications where the speed of the slurry pump is the same as that of the motor.

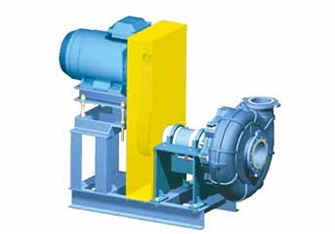

CV Driven Type (Overhead mounted)
- For applications where floor space or area is limited
The pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed. The motor is fixed to the motor support frame which is located on the bearing support above the slurry pump.

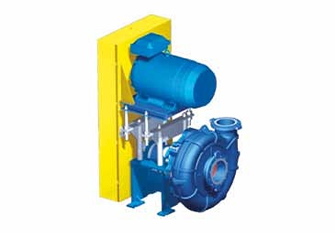

ZV Driven Type (Reverse overhead mounted)
- Used in installations where the selected motor is too large to be CV (Overhead) mounted
Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support. This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.

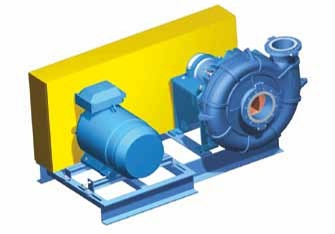

CR Driven Type (Side mounted)
- For applications where height or overhead spaced is limited
This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed on the side of the pump. This installation method is suitable for large-power motors.
