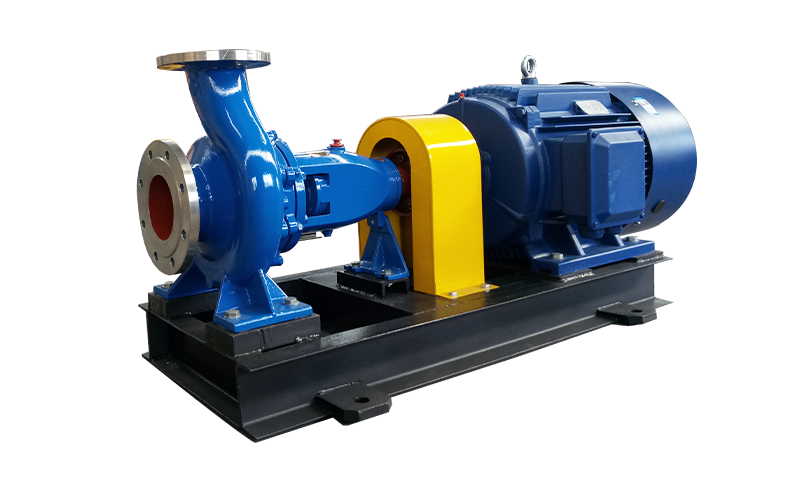

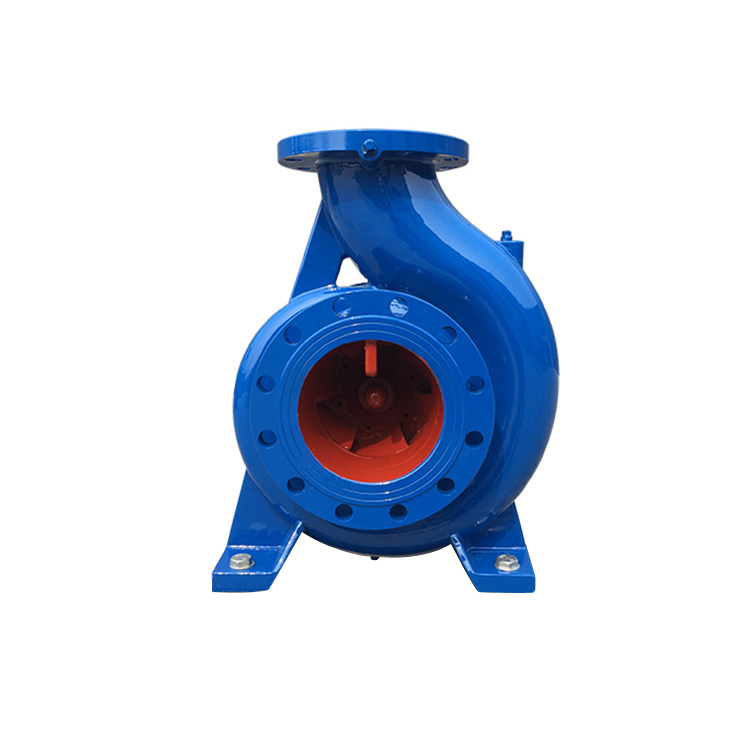

End Suction Water Pump
End Suction Water Pump
IS series single-stage end-suction (axial intake) centrifugal pump is an energy-saving pump designed by teamwork in the whole nation, it is improved based on model BA, B and other single-stage water centrifugal pump. The advantages: its hydraulic capability is distributed reasonably, and wide options for user, conveniently check and repair, the efficiency and throw is up to advanced international level. This pump is suitable for industrial and city water supply, water drainage, and widely used for agricultural irrigation, transportation of pure water or other liquids whose physical and chemical nature are similar to pure water and the temperature should not be higher than 80℃.
Design Features
- Outlet: 50 - 200mm
- Flow rate: 6.3 - 400m3/h
- Head: 5 - 160m
- Max. Power: up to 2500kw
- Speed: 1450-2950rpm/50HZ
- Efficiency: up to 90%
- Operating Temperature: 80℃
ASSEMBLY DRAWING
