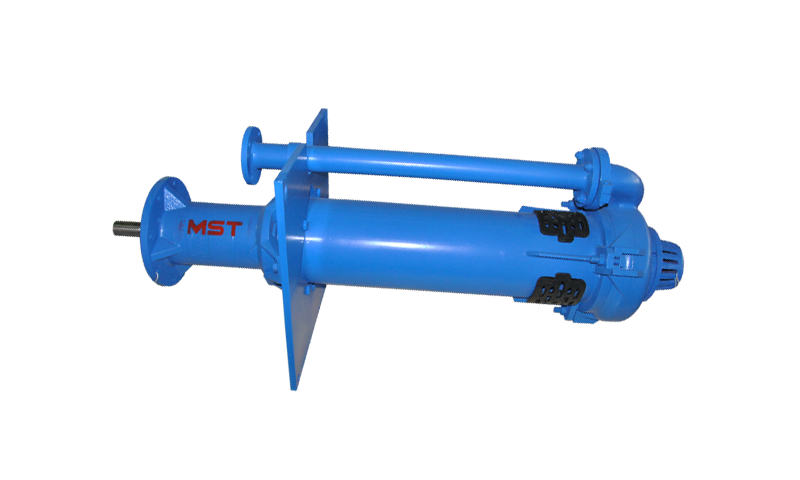

Vertical Heavy Duty Sump Pump
Vertical Slurry Pump

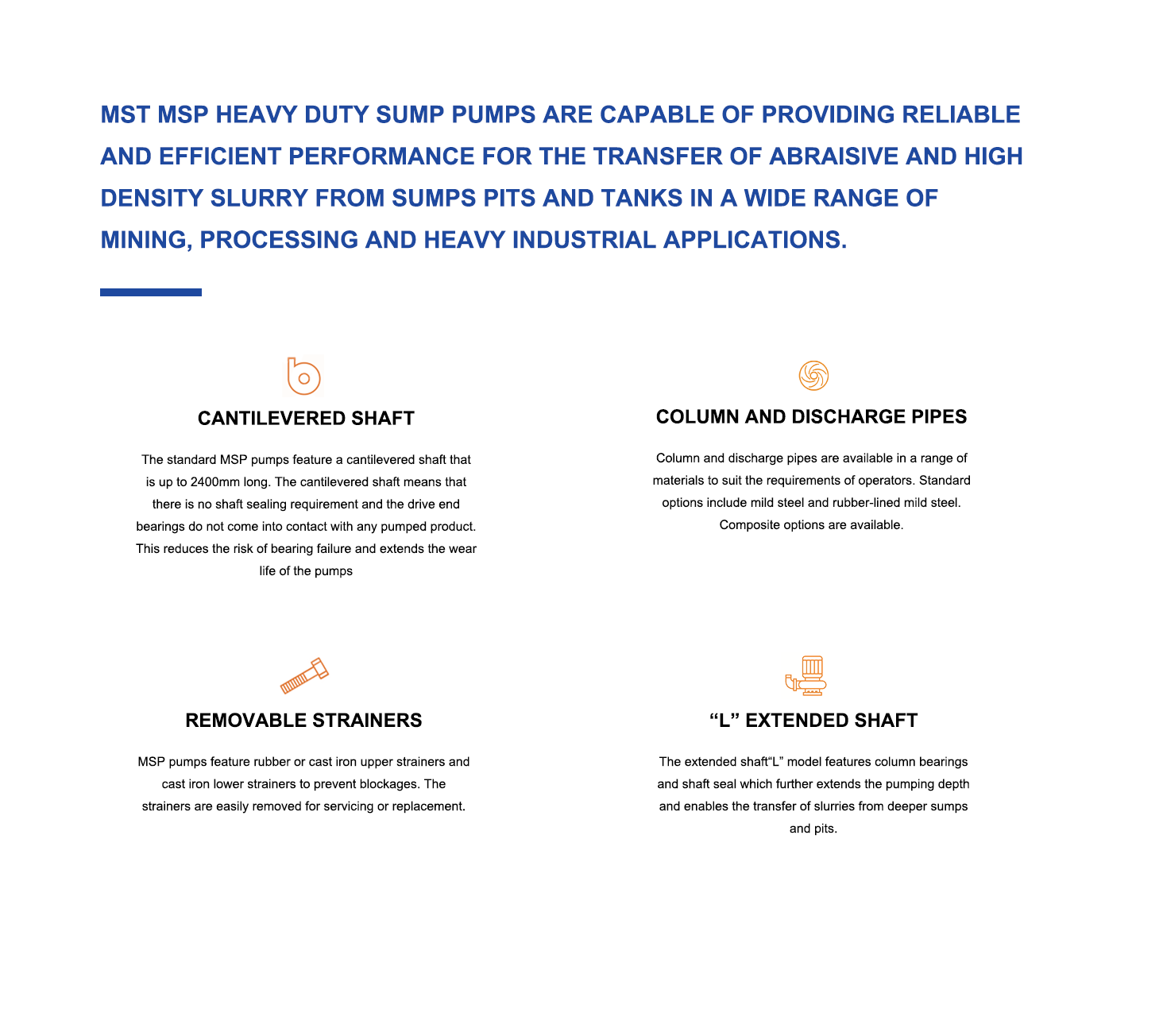

MSP heavy duty sump pumps are vertical, shaft-driven centrifugal slurry pumps designed for transferring abrasive and high-density slurry from sumps, pits and other submersible sources. The heavy duty design of the MSP pumps allows the passage of large particles with a diameter of up to 50mm, Pumps will continue to operate even when the top inlet is not submerged, allowing the liquid level to be lowered to the bottom of the sump or pitSuction extension pipes of up to 2 metres in length can be added to the bottom inlet of the pump to extend the pumping depth. Designed as a fixed installation the MSP provides reliable pumping performance with minimal maintenance requirements and simple servicing.
Design Features
- Outlet: 40-150mm
- Flow rate: 18-1260m3/h
- Head: up to 40m
- Max. Power: up to 110kw
- Impeller diameter: 188-450mm
- Material: 27% were resistant Chrome
- Max. particle size: 12-50mm

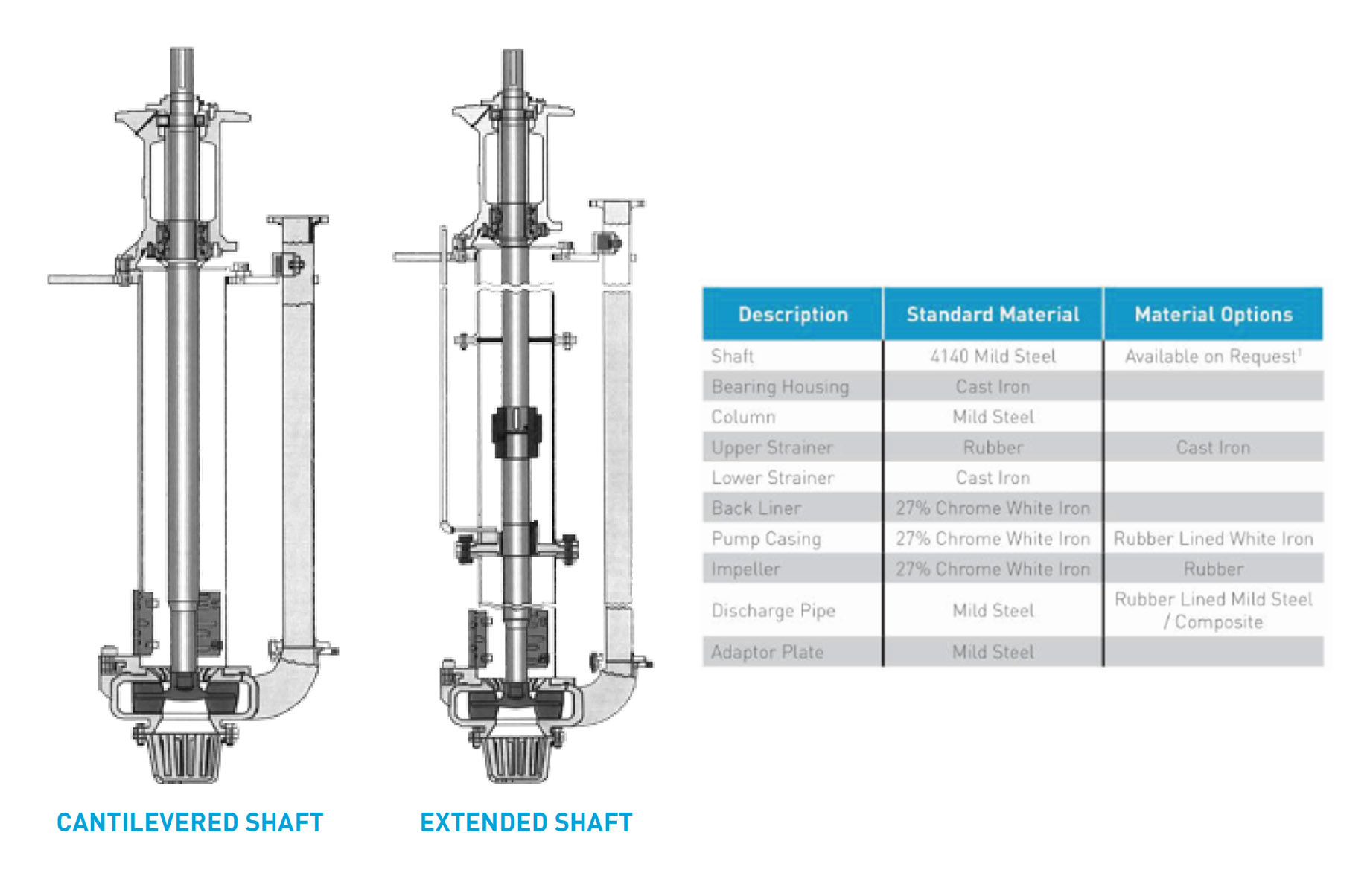

ASSEMBLY DRAWING
RELEVANT CONTENT
-

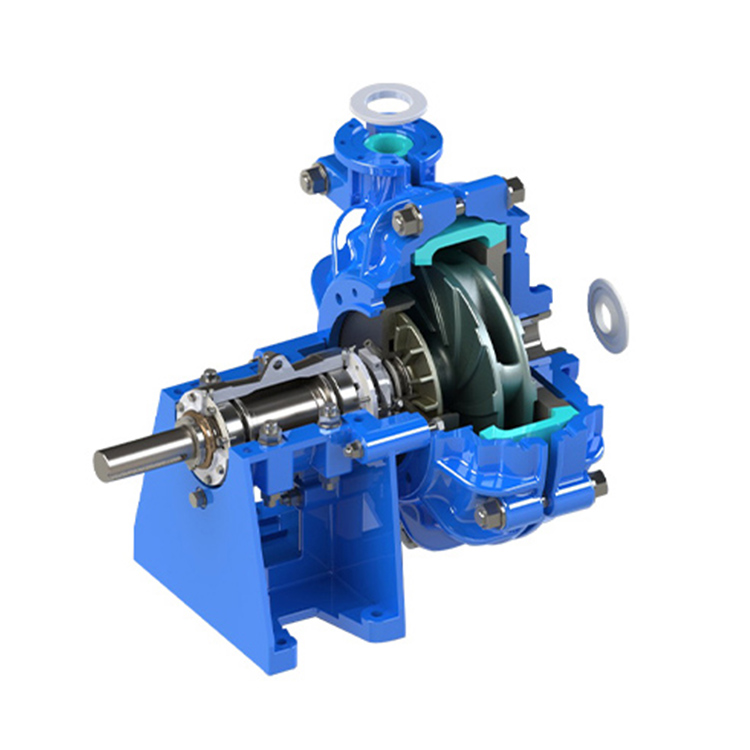

Horizontal Slurry Pump
MAH series pumps are heavy-duty horizontal slurry pumps designed to handle the transfer of abrasive and high-density slu...
-

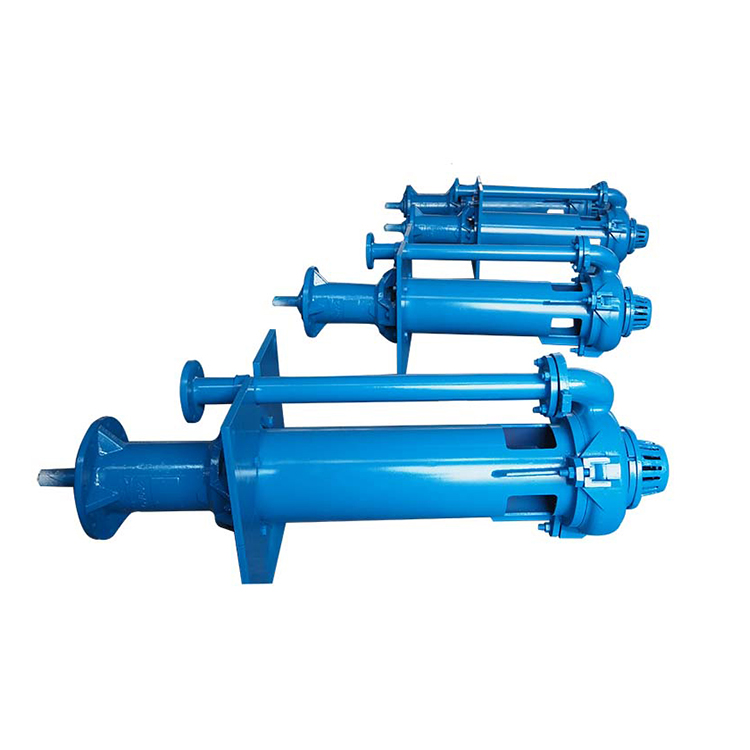

Vertical Heavy Duty Sump Pump
MSP heavy duty sump pumps are vertical, shaft-driven centrifugal slurry pumps designed for transferring abrasive and hig...
-

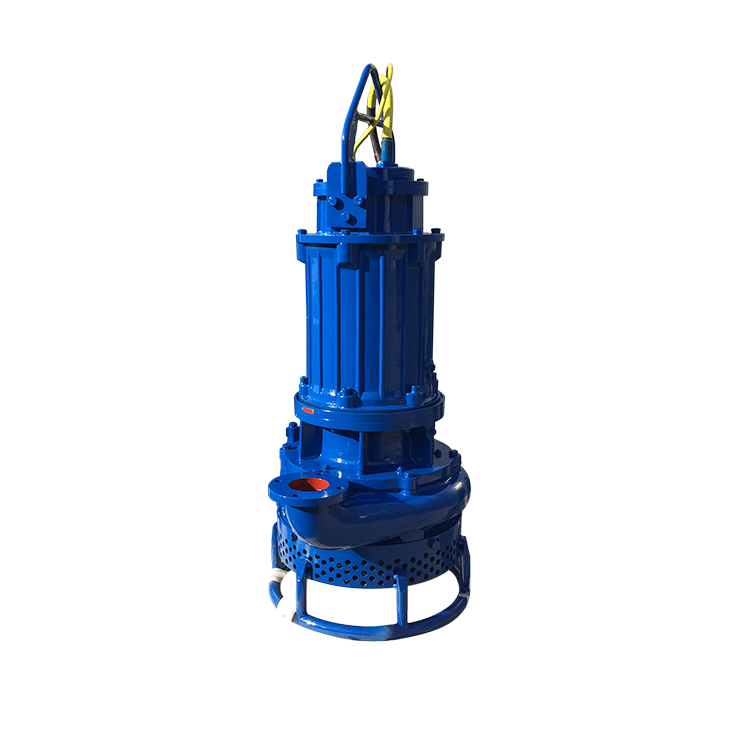

Submersible Slurry Pump
SS Submersible series are heavy-duty, submersible slurry pumps designed to handle a wide range of slurries sand abrasive...
-

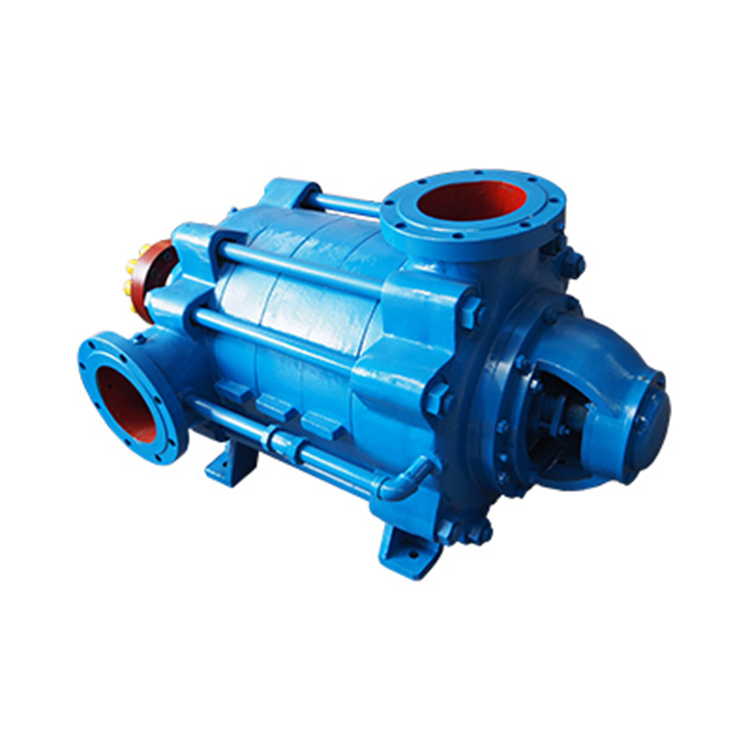

Horizontal Multistage Pump
D serial pump is multistage centrifugal pump The serial pump is multistage section centrifugal pump, the excellent hydra...
-

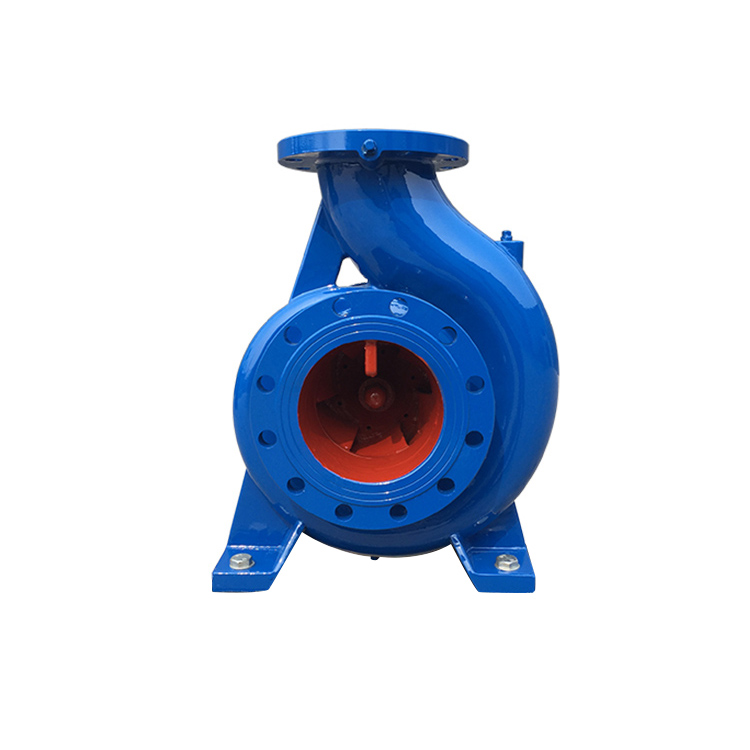

End Suction Water Pump
IS series single-stage end-suction (axial intake) centrifugal pump is an energy-saving pump designed by teamwork in the ...
-

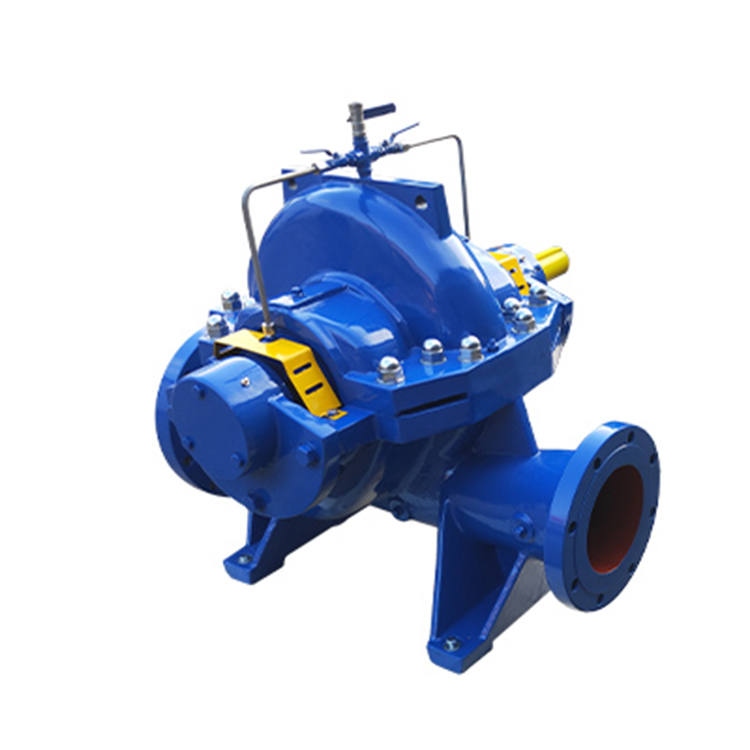

Horizontal Double Suction Pump
S type pump is a single-stage double-suction horizontal split centrifugal pump. It is used to transport pure water and t...
-

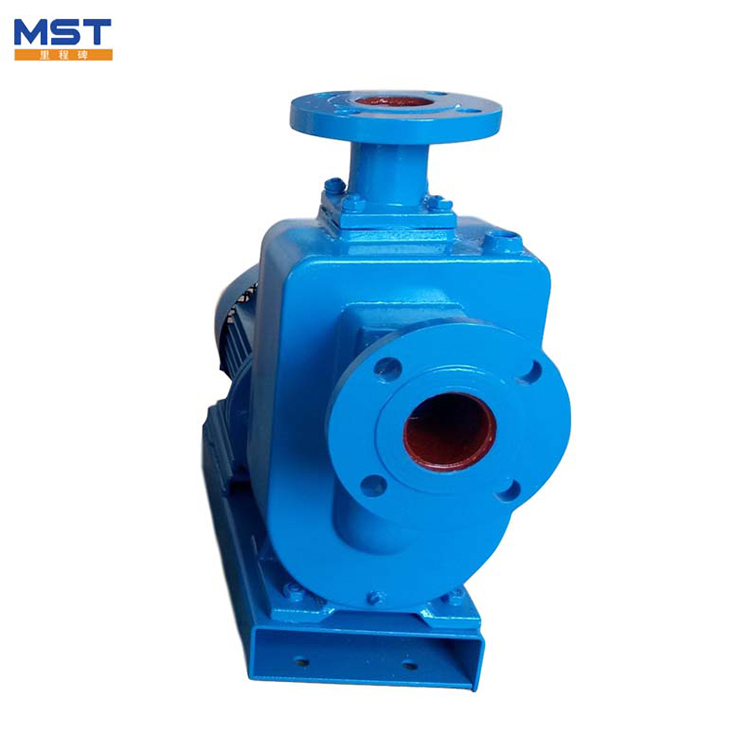

Z Horizontal Self Priming Pump
